环境配置
使用夜神模拟器
bash
cd D:\Program Files\Nox\bin
nox_adb.exe connect 127.0.0.1:62001##容器组件
容器组件Container包含一个子widget，自身具备alignment、padding等属性，方便布局过程中摆放child。
常用属性
| 属性名 | 类型 | 说明 |
|---|---|---|
| key | key | Container唯一标识符，用于查找更新 |
| alignment | AlignmentGeometry | 控制child的对齐方式，如果Container或者Container的父节点尺寸大于child的尺寸，该属性设置会起作用，有很多种对齐方式 |
| padding | EdgeInsetsGeometry | Decoration内部的空白区，如果有child，child位于padding内部 |
| color | Color | 用来设置Container背景色，如果foregroudDecoration设置的话，可能会覆盖color效果 |
| decoration | Decoration | 绘制在child后面的修饰，设置了Decoration的话，就不能设置color属性，否则会报错，此时应该在Decoration中进行颜色的设置 |
| foregroundDecoration | Decoration | 绘制在child前面的装饰 |
| width | double | Container的宽度，设置为double.infinity可以强制在宽度上撑满，不设置，则根据child和父节点两者一起布局 |
| height | double | Container的高度，设置为double.infinity可以强制在高度上撑满 |
| constraints | BoxConstraints | 添加到child上额外的约束条件 |
| margin | EdgeInsetsGeometry | 围绕在Decoration和child之外的空白区域，不属于内容区域 |
| transform | Matrix4 | 设置Container的变换矩阵，类型为Matrix4 |
| child | Widget | Container中的内容Widget |
dart
import 'package:flutter/material.dart';
void main() {
runApp(MaterialApp(
home: Scaffold(
appBar: AppBar(title: const Text("你好Flutter")),
body: const MyApp(),
),
));
}
// 代码块 statelessW
class MyApp extends StatelessWidget {
const MyApp({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Center(
child: Container(
alignment: Alignment.center,
height: 200,
width: 200,
decoration: const BoxDecoration(
color: Colors.yellow,
),
child: const Text(
"你好Flutter",
style: TextStyle(fontSize: 20),
),
),
);
}
}背景渐变等属性
dart
class MyApp extends StatelessWidget {
const MyApp({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Center(
child: Container(
margin: const EdgeInsets.fromLTRB(0, 60, 0, 0),
alignment: Alignment.center, //配置Container容器内元素的方位
width: 200,
height: 200,
// transform:Matrix4.translationValues(0, -40, 0),// 位移
// transform:Matrix4.rotationZ(0.2),// 旋转
transform: Matrix4.skewY(.2),
decoration: BoxDecoration(
color: Colors.yellow, //背景颜色
border: Border.all(
//边框
color: Colors.red,
width: 2),
borderRadius: BorderRadius.circular(10), //配置圆角 也可以实现圆形
boxShadow: const [
//配置阴影效果
BoxShadow(color: Colors.blue, blurRadius: 20.0)
],
// LinearGradient 背景线性渐变 RadialGradient径向渐变
gradient:
const LinearGradient(colors: [Colors.red, Colors.yellow])),
child: const Text(
"你好Flutter",
style: TextStyle(color: Colors.black, fontSize: 20),
),
),
);
}
}##文本组件
###4.1 Text
文本组件Text负责显示文本和定义显示样式。
常用属性
| 属性名 | 类型 | 默认值 | 说明 |
|---|---|---|---|
| data | String | 数据为要显示的文本 | |
| maxLines | int | 0 | 文本显示的最大行数 |
| style | TextStyle | null | 文本样式，可定义文本的字体大小、颜色、粗细等 |
| textAlign | TextAlign | TextAlign.center | 文本水平方向对齐方式，取值右center、end、justify、left、right、start、values |
| textDirection | TextDirection | TextDirection.ltr | 有些文本书写方向从左到右，如英语、中文，有些则是从右到左，比如乌尔都语。从左到右使用TextDirection.ltr，从右到左使用TextDirection.rtl |
| textScaleFactor | double | 1.0 | 字体缩放系数，比如设置为1.5，那么字体会放大1.5倍 |
| textSpan | TextSpan | null | 文本块，TextSpan里可以包含文本内容及样式 |
###4.2 RichText
富文本组件RichText使用多个不同风格的widget显示文本，要显示的文本使用TextSpan对象树来描述，每个对象都有一个用于该子树的关联样式。文本可能多行，也可能显示在同一行，取决于布局约束。
常用属性
| 属性名 | 类型 | 默认值 | 说明 |
|---|---|---|---|
| text | TextSpan | - | 要显示的的文本 |
| textAlign | TextAlign | TextAlign.start | 文本水平方向对齐方式，取值右center、end、justify、left、right、start、values |
| textDirection | TextDirection | TextDirection.ltr | 有些文本书写方向从左到右，如英语、中文，有些则是从右到左，比如乌尔都语。从左到右使用TextDirection.ltr，从右到左使用TextDirection.rtl |
| softWrap | bool | true | 是否自动换行 |
| overflow | TextOverflow | TextOverflow.clip | 内容超出文本范围处理方式，默认截断处理 |
| textScaleFactor | double | 1.0 | 文本缩放比例，默认100%比例显示 |
| maxLines | int | - | 最大显示行数 |
dart
class MyApp extends StatelessWidget {
const MyApp({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Center(
child: Container(
alignment: Alignment.center,
height: 200,
width: 200,
decoration: BoxDecoration(
color: Colors.yellow,
gradient: const LinearGradient(
//LinearGradient 背景线性渐变 RadialGradient径向渐变
colors: [Colors.red, Colors.orange],
),
boxShadow: const [
//卡片阴影
BoxShadow(
color: Colors.blue,
offset: Offset(2.0, 2.0),
blurRadius: 10.0,
)
],
border: Border.all(color: Colors.black, width: 1)),
transform: Matrix4.rotationZ(.2),
child: const Text('各位同学大家hhdsad',
textAlign: TextAlign.left,
overflow: TextOverflow.ellipsis,
// overflow:TextOverflow.fade ,
maxLines: 2,
style: TextStyle(
fontSize: 26.0,
color: Colors.black,
// color:Color.fromARGB(a, r, g, b)
fontWeight: FontWeight.w800,
fontStyle: FontStyle.italic,
decoration: TextDecoration.lineThrough,
decorationColor: Colors.white,
decorationStyle: TextDecorationStyle.dashed,
letterSpacing: 5.0)),
),
);
}
}##.图片组件
图片组件Image显示图像的组件，有多种构造函数：
- new Image：从ImageProvider获取图像
- new Image.asset：加载资源图片
- new Image.file：加载本地图片文件
- new Image.network：加载网络图片
- new Image.memory：加载Uint8List资源图片
常用属性
| 属性名 | 类型 | 说明 |
|---|---|---|
| image | ImageProvider | 抽象类，需要自己实现获取图片数据的操作 |
| width/height | double | Image显示区域的宽度和高度设置，这里需要把Image和图片两个区分开。图片本身有大小，Image Widget是图片的容器，本身也有大小。宽度和高度的配置经常和fitshu'x |
| fit | BoxFit | 图片填充模式，具体取值见 BoxFit取值表 |
| color | Color | 图片颜色 |
| colorBlendMode | BlendMode | 在对图片进行手动处理的时候，可能用到图层混合，如改变图片颜色，此属性可以对颜色进行混合处理，有多种模式 |
| alignment | Alignment | 控制图片的摆放位置，比如图片放置在右下角则为Alignment.bottomRight |
| repeat | ImageRepeat | 此属性可以设置图片的重复模式。moRepeat为不重复，Repeat为x和y方向重复，repeatX为x方向重复，repeatY为y方向重复 |
| centerSlice | Rect | 当图片需要被拉伸显示时，centerSlice定义的矩形区域会被拉伸，可以理解为我们在图片内部定义9个点用作拉伸，9个点为"上","下","左","右","上中","下中","左中","右中","正中" |
| matchTextDirection | bool | matchTextDirection与Derection配合使用。TextDirectio有两个值分别为：TextDirection.ltr从左到右展示图片，TextDirection.rtl为从右到左展示图片 |
| gaplessPlayback | bool | 当ImageProvider发生变化后，重新加载图片的过程中，原图片的展示是否保留。值为true则保留，值为false则不保留，直接等待下一张图片加载 |
BoxFit取值及描述
| 取值 | 描述 |
|---|---|
| BoxFit.fill | 全图显示，显示可能拉伸，充满 |
| BoxFit.contain | 全图显示，显示原比例，不需充满 |
| BoxFit.cover | 显示可能拉伸，可能裁剪，充满 |
| BoxFit.fitWidth | 显示可能拉伸，可能裁剪，宽度充满 |
| BoxFit.fitHeight | 显示可能拉伸，可能裁剪，高度充满 |
| BoxFit.none | 原始大小 |
| BoxFit.scaleDown | 效果和BoxFit.contain差不多，但是该属性不允许显示超过原图大小(可小不可大) |
dart
// pubspec.yaml 配置
flutter:
assets:
- images/a.jpeg
//加载本地图片
class LoaclImage extends StatelessWidget {
const LoaclImage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Container(
height: 150,
width: 150,
decoration: const BoxDecoration(
color: Colors.yellow,
),
child: Image.asset("images/a.jpeg",fit: BoxFit.cover,),
);
}
}远程图片
dart
class MyApp extends StatelessWidget {
const MyApp({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Center(
child: Container(
// alignment: Alignment.centerRight,
margin: const EdgeInsets.fromLTRB(0, 20, 0, 0),
height: 150,
width: 150,
decoration: const BoxDecoration(color: Colors.yellow),
child: Image.network(
"https://www.itying.com/themes/itying/images/ionic4.png",
// alignment:Alignment.centerLeft
// scale:2
// fit: BoxFit.cover,
// repeat:ImageRepeat.repeatY
),
));
}
}
//实现一个圆形图片 使用 ClipOval
class ClipImage extends StatelessWidget {
const ClipImage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return ClipOval(
child: Image.network(
"https://www.itying.com/images/201906/goods_img/1120_P_1560842352183.png",
width: 150,
height: 150,
fit: BoxFit.cover,
),
);
}
}
//Container实现一个圆形图片
class Circular extends StatelessWidget {
const Circular({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Container(
height: 150,
width: 150,
decoration: BoxDecoration(
color: Colors.yellow,
borderRadius: BorderRadius.circular(75),
image: const DecorationImage(
image: NetworkImage(
"https://www.itying.com/themes/itying/images/ionic4.png"),
fit: BoxFit.cover)),
);
}
}##图标及按钮组件
###5.1 图标组件
图标组件Icon展示图标的组件，该组件不可交互，要实现交互图标，可以考虑使用IconButton组件。图标相关组件有以下几个：
- IconButton：可交互的Icon
- Icons：框架自带Icon集合
- IconTheme：Icon主题
- ImageIcon：通过AssetImages或者其他图片显示Icon
####常用属性
| 属性名 | 类型 | 默认值 | 说明 |
|---|---|---|---|
| color | Color | null | 图标的颜色，例如Colors.green[500] |
| icon | IconData | null | 展示的具体图标，可使用Icons图标列表中的任意一个图标即可，如Icons.phone表示一个电话的图标 |
| style | TextStyle | null | 文本样式，可定义文本的字体大小、颜色、粗细等 |
| size | Double | 24.0 | 图标的大小，注意需要带上小数位 |
| textDirection | TextDirection | TextDirection.ltr | Icon组件里也可以添加文本内容。有些文本书写的方向是从左到右，有些则是从右到左。从左到右使用TextDirection.ltr，从右到左使用TextDirection.rtl |
dart
class MyApp extends StatelessWidget {
const MyApp({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Center(
child: Column(
children: const [
Icon(Icons.search, color: Colors.red, size: 40),
SizedBox(height: 10),
Icon(Icons.home),
SizedBox(height: 10),
Icon(Icons.category),
SizedBox(height: 10),
Icon(Icons.shop),
SizedBox(height: 10),
],
));
}
}Flutter中借助阿里巴巴图标库自定义字体图标
dart
// 配置
fonts:
- family: ityingIcon #指定一个字体名 根据自己的需求定义
fonts:
- asset: fonts/iconfont.ttf
- family: flutterIcon
fonts:
- asset: fonts/szotmkIconfont.ttf
// 自定义 import 'package:flutter/material.dart';
class ItyingIcon{
static const IconData book=IconData(
0x3447,
fontFamily:"ityingIcon",
matchTextDirection:true
);
static const IconData weixin=IconData(
0xf0106,
fontFamily:"ityingIcon",
matchTextDirection:true
);
static const IconData cart=IconData(
0xf0179,
fontFamily:"ityingIcon",
matchTextDirection:true
);
static const IconData yonghu=IconData(
0xe633,
fontFamily:"flutterIcon",
matchTextDirection:true
);
static const IconData address=IconData(
0xe64e,
fontFamily:"flutterIcon",
matchTextDirection:true
);
static const IconData category=IconData(
0xe71b,
fontFamily:"flutterIcon",
matchTextDirection:true
);
}使用
dart
class MyHomePage extends StatelessWidget {
const MyHomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Column(
children: const [
SizedBox(height: 20),
Icon(
Icons.home,
size: 40,
color: Colors.red,
),
SizedBox(height: 20),
Icon(Icons.settings),
SizedBox(height: 20),
Icon(Icons.search),
SizedBox(height: 20),
Icon(Icons.personal_injury_outlined),
SizedBox(height: 20),
Icon(
Icons.category,
size: 60,
color: Colors.blue,
),
Icon(
Icons.category,
size: 60,
color: Colors.blue,
),
Icon(
Icons.shop,
size: 60,
color: Colors.red,
),
SizedBox(height: 40),
Icon(
ItyingIcon.book,
size: 40,
color: Colors.orange,
),
SizedBox(height: 20),
Icon(
ItyingIcon.weixin,
size: 40,
color: Colors.green,
),
SizedBox(height: 20),
Icon(
ItyingIcon.yonghu,
size: 30,
color: Colors.black,
),
SizedBox(height: 20),
Icon(ItyingIcon.address),
SizedBox(height: 20),
Icon(ItyingIcon.category),
],
);
}
}##列表控件
列表是最常见的需求。在Flutter中，用ListView来显示列表项，支持垂直和水平方向展示，通过一个属性我们就可以控制其方向，列表有以下几类：
- 水平的列表
- 垂直的列表
- 数据量非常大的列表
- 矩阵式的列表
###6.1 基础列表组件
基础列表组件为ListView组件。
####常用属性
| 属性名 | 类型 | 默认值 | 说明 |
|---|---|---|---|
| scrollDirection | Axix | Axis.vertical | 列表的排列方向，Axis.vertical为垂直方向，是默认值，Axis.horizontal为水平方向 |
| padding | EdgInsetsGeometry | - | 列表内部的空白区域，如果有child，child位于padding内部 |
| reverse | bool | false | 组件排列方向 |
| children | List<Widget> | - | 列表元素，注意List元素全部为Widget类型 |
dart
class MyHomePage extends StatelessWidget {
const MyHomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return ListView(
children: const [
SizedBox(height: 20),
Icon(
Icons.home,
size: 40,
color: Colors.red,
),
SizedBox(height: 20),
Icon(Icons.settings),
SizedBox(height: 20),
Icon(Icons.search),
SizedBox(height: 20),
Icon(Icons.personal_injury_outlined),
SizedBox(height: 20),
Icon(
Icons.category,
size: 60,
color: Colors.blue,
),
Icon(
Icons.category,
size: 60,
color: Colors.blue,
),
Icon(
Icons.shop,
size: 60,
color: Colors.red,
),
SizedBox(height: 40),
Icon(
ItyingIcon.book,
size: 40,
color: Colors.orange,
),
SizedBox(height: 20),
Icon(
ItyingIcon.weixin,
size: 40,
color: Colors.green,
),
SizedBox(height: 20),
Icon(
ItyingIcon.yonghu,
size: 30,
color: Colors.black,
),
SizedBox(height: 20),
Icon(ItyingIcon.address),
SizedBox(height: 20),
Icon(ItyingIcon.category),
SizedBox(height: 20),
Icon(
ItyingIcon.weixin,
size: 40,
color: Colors.green,
),
SizedBox(height: 20),
Icon(
ItyingIcon.yonghu,
size: 30,
color: Colors.black,
),
SizedBox(height: 20),
Icon(ItyingIcon.address),
SizedBox(height: 20),
Icon(ItyingIcon.category),
],
);
}
}dart
class MyHomePage extends StatelessWidget {
const MyHomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return ListView(
children: const <Widget>[
ListTile(title: Text("我是一个列表")),
Divider(),
ListTile(title: Text("我是一个列表")),
Divider(),
ListTile(title: Text("我是一个列表")),
Divider(),
ListTile(title: Text("我是一个列表")),
Divider(),
ListTile(title: Text("我是一个列表")),
Divider(),
ListTile(title: Text("我是一个列表")),
Divider(),
ListTile(title: Text("我是一个列表")),
Divider(),
ListTile(title: Text("我是一个列表")),
Divider(),
ListTile(title: Text("我是一个列表")),
Divider(),
ListTile(title: Text("我是一个列表")),
Divider(),
ListTile(title: Text("我是一个列表")),
Divider(),
],
);
}
}菜单列表
dart
class MyHomePage extends StatelessWidget {
const MyHomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return ListView(
children: const <Widget>[
ListTile(leading: Icon(Icons.home), title: Text("首页")),
Divider(),
ListTile(
leading: Icon(Icons.assignment, color: Colors.red),
title: Text("全部订单"),
),
Divider(),
ListTile(
leading: Icon(Icons.payment, color: Colors.green),
title: Text("待付款"),
),
ListTile(
leading: Icon(Icons.favorite, color: Colors.lightGreen),
title: Text("我的收藏"),
trailing:Icon(Icons.chevron_right_sharp) ,
),
Divider(),
ListTile(
leading: Icon(Icons.people, color: Colors.black54),
title: Text("在线客服"),
trailing:Icon(Icons.chevron_right_sharp) ,
),
Divider(),
],
);
}
}图文列表
dart
class MyHomePage extends StatelessWidget {
const MyHomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return ListView(
padding: const EdgeInsets.all(10),
children: <Widget>[
Image.network("https://www.itying.com/images/flutter/1.png"),
Container(
padding: const EdgeInsets.fromLTRB(0, 6, 0, 0),
height: 44,
child: const Text(
"我是一个标题",
textAlign: TextAlign.center,
style: TextStyle(fontSize: 22)),
),
Image.network("https://www.itying.com/images/flutter/3.png"),
Container(
padding: const EdgeInsets.fromLTRB(0, 6, 0, 0),
height: 44,
child: const Text(
"我是一个标题",
textAlign: TextAlign.center,
style: TextStyle(fontSize: 22)),
),
Image.network("https://www.itying.com/images/flutter/2.png"),
Container(
padding: const EdgeInsets.fromLTRB(0, 6, 0, 0),
height: 44,
child: const Text(
"我是一个标题",
textAlign: TextAlign.center,
style: TextStyle(fontSize: 22)),
),
Image.network("https://www.itying.com/images/flutter/4.png"),
Container(
padding: const EdgeInsets.fromLTRB(0, 6, 0, 0),
height: 44,
child: const Text(
"我是一个标题",
textAlign: TextAlign.center,
style: TextStyle(fontSize: 22)),
),
Image.network("https://www.itying.com/images/flutter/5.png"),
Container(
padding: const EdgeInsets.fromLTRB(0, 6, 0, 0),
height: 44,
child: const Text(
"我是一个标题",
textAlign: TextAlign.center,
style: TextStyle(fontSize: 22)),
),
Image.network("https://www.itying.com/images/flutter/6.png"),
],
);
}
}###6.2 水平列表组件
水平列表组件即为水平方向排列的组件，列表内部元素以水平方向排列。把ListView组件的scrollDirection属性设置为Axis.horizontal即可。
DART
class MyHomePage extends StatelessWidget {
const MyHomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return SizedBox(
height: 120,
child: ListView(
scrollDirection: Axis.horizontal, //水平列表
padding: const EdgeInsets.all(10),
children: <Widget>[
Container(
width: 120,
decoration: const BoxDecoration(color: Colors.white),
child: Column(
children: [
SizedBox(
height: 80,
child: Image.network("https://www.itying.com/images/flutter/1.png",fit: BoxFit.cover,),
),
const Text("文字")
],
),
),
Container(
width: 120,
decoration: const BoxDecoration(color: Colors.yellow),
),
Container(
height: 120,
width: 120,
decoration: const BoxDecoration(color: Colors.orange),
),
Container(
width: 120,
decoration: const BoxDecoration(color: Colors.black),
),
Container(
width: 120,
decoration: const BoxDecoration(color: Colors.blue),
),
Container(
width: 120,
decoration: const BoxDecoration(color: Colors.red),
),
Container(
width: 120,
decoration: const BoxDecoration(color: Colors.pink),
),
Container(
width: 120,
decoration: const BoxDecoration(color: Colors.blueGrey),
),
],
),
);
}
}###6.3 长列表组件
当列表的数据项非常多时，需要使用长列表，比如淘宝后台订单列表、手机通讯录等，这些列表项数据很多。长列表也是使用ListView作为基础组件，只不过需要添加一个列表项构造器itemBuilder
dart
class MyHomePage extends StatelessWidget {
const MyHomePage({Key? key}) : super(key: key);
//自定义方法
List<Widget> _initListData() {
List<Widget> list = [];
for (var i = 0; i < 20; i++) {
list.add(ListTile(
title: Text("我是一个列表---$i"),
));
}
return list;
}
@override
Widget build(BuildContext context) {
return ListView(
children: _initListData(),
);
}
}dart
class MyHomePage extends StatelessWidget {
MyHomePage({Key? key}) : super(key: key) {
print(listData);
}
//第一种方法
// List<Widget> _initListData(){
// List<Widget> tempList=[];
// for (var i = 0; i < listData.length; i++) {
// tempList.add(
// ListTile(
// leading: Image.network("${listData[i]["imageUrl"]}"),
// title: Text("${listData[i]["title"]}"),
// subtitle: Text("${listData[i]["author"]}"),
// )
// );
// }
// return tempList;
// }
//第二种方法
List<Widget> _initListData() {
var tempList = listData.map((value) {
return ListTile(
leading: Image.network("${value["imageUrl"]}"),
title: Text("${value["title"]}"),
subtitle: Text("${value["author"]}"),
);
});
return tempList.toList();
}
@override
Widget build(BuildContext context) {
return ListView(
children: _initListData(),
);
}
}ListView.builder实现动态列表
dart
class MyHomePage extends StatelessWidget {
const MyHomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return ListView.builder(
itemCount: listData.length,
itemBuilder: (context,i){
return ListTile(
leading: Image.network(listData[i]["imageUrl"]),
title: Text(listData[i]["title"]),
subtitle:Text(listData[i]["author"]) ,
);
}
);
}
}##网格布局组件
网格布局组件GridView可以实现多行多列布局的应用场景。使用GridView创建网格列表有多种方式：
- GridView.count：通过单行展示个数创建
- GridView.extent：通过最大宽度创建
###常用属性
| 属性名 | 类型 | 默认值 | 说明 |
|---|---|---|---|
| scrollDirection | Axix | Axis.vertical | 滚动的方向，Axis.vertical为垂直方向，是默认值，Axis.horizontal为水平方向 |
| reverse | bool | false | 默认是从上或者左，向下或者右滚动的，这个属性控制是否反向，默认值为false |
| controller | ScrollController | - | 控制child滚动时的位置 |
| primary | bool | - | 是否是父节点的PrimaryScrollController所关联的主滚动视图 |
| phisics | ScrollPhysics | - | 滚动的视图如何响应用户的输入 |
| shrinkWrap | bool | false | 滚动方向的滚动视图内容是否应该由正在查看的内容所决定 |
| padding | EdgInsetsGeometry | - | 四周的空白区域 |
| gridDelegate | SliverGridDelegate | - | 控制GridView中子节点布局的delegate |
| cacheExtent | double | - | 缓存区域 |
GridView.count 固定数量子元素
dart
class HomePage extends StatelessWidget {
const HomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return GridView.count(
crossAxisCount: 5, //一行的Widget数量
children: const [
Icon(Icons.pedal_bike),
Icon(Icons.home),
Icon(Icons.ac_unit),
Icon(Icons.search),
Icon(Icons.settings),
Icon(Icons.airport_shuttle),
Icon(Icons.all_inclusive),
Icon(Icons.beach_access),
Icon(Icons.cake),
Icon(Icons.circle),
],
);
}
}GridView.extent 为固定最大长度
dart
class HomePage extends StatelessWidget {
const HomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return GridView.extent(
//通过它可以快速的创建横轴子元素为固定最大长度的的GridView。
maxCrossAxisExtent: 180, //横轴子元素的最大长 度
children: const [
Icon(Icons.pedal_bike),
Icon(Icons.home),
Icon(Icons.ac_unit),
Icon(Icons.search),
Icon(Icons.settings),
Icon(Icons.airport_shuttle),
Icon(Icons.all_inclusive),
Icon(Icons.beach_access),
Icon(Icons.cake),
Icon(Icons.circle),
],
);
}
}Row 水平布局组件
mainAxisAlignment 主轴的排序方式
crossAxisAlignment 次轴的排序方式
children 组件子元素
dart
class HomePage extends StatelessWidget {
const HomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Container(
width: double.infinity,
height: double.infinity,
color: Colors.black12,
child: Row( //外部没有Container 行是自适应的
mainAxisAlignment: MainAxisAlignment.spaceBetween,
crossAxisAlignment: CrossAxisAlignment.center,
children: [
IconContainer(Icons.home),
IconContainer(Icons.search,color: Colors.yellow,),
IconContainer(
Icons.ac_unit_sharp,
color: Colors.orange,
),
],
),
);
}
}
class HomePage extends StatelessWidget {
const HomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Row(
children: [
Expanded(
flex: 1,
child: IconContainer(Icons.home), //这个元素设置宽度是没有效果的
),
IconContainer(
Icons.ac_unit_sharp,
color: Colors.orange,
)
],
);
}
}Column垂直布局组件
dart
class HomePage extends StatelessWidget {
const HomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Container(
width: double.infinity,
height: double.infinity,
color: Colors.black12,
child: Column(
mainAxisAlignment: MainAxisAlignment.spaceEvenly,
crossAxisAlignment: CrossAxisAlignment.center,
children: [
IconContainer(Icons.home),
IconContainer(Icons.search,color: Colors.yellow,),
IconContainer(
Icons.ac_unit_sharp,
color: Colors.orange,
),
],
),
);
}
}double.infinity 和double.maxFinite
如下可以让Container铺满整个屏幕
dart
Widget build(BuildContext context) {
return Container(
height: double.infinity,
width: double.infinity,
color: Colors.black26,
child: Column(
crossAxisAlignment: CrossAxisAlignment.center,
mainAxisAlignment: MainAxisAlignment.spaceEvenly,
children: [
IconContainer(Icons.home, color: Colors.red),
IconContainer(Icons.search, color: Colors.blue),
IconContainer(Icons.send, color: Colors.orange),
],
),
);
}如下可以让Container的宽度和高度等于父元素的宽度高度
dart
class HomePage extends StatelessWidget {
const HomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Container(
height: 400,
width: 600,
color: Colors.red,
child: Container(
height: double.maxFinite,
width: double.infinity,
color: Colors.black26,
child: Column(
crossAxisAlignment: CrossAxisAlignment.center,
mainAxisAlignment: MainAxisAlignment.spaceEvenly,
children: [
IconContainer(Icons.home, color: Colors.red),
IconContainer(Icons.search, color: Colors.blue),
IconContainer(Icons.send, color: Colors.orange),
],
),
),
);
}
}弹性布局
Flex 组件可以沿着水平或垂直方向排列子组件，如果你知道主轴方向，使用 Row 或 Column 会方便一 些，因为 Row 和 Column 都继承自 Flex ，参数基本相同，所以能使用Flex的地方基本上都可以使用 Row 或 Column 。 Flex 本身功能是很强大的，它也可以和 Expanded 组件配合实现弹性布局 。
水平弹性布局
dart
class HomePage extends StatelessWidget {
const HomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Flex(
direction: Axis.horizontal,
children: [
Expanded(
flex: 1,
child: IconContainer(Icons.home), //这个元素设置宽度是没有效果的
),
Expanded(
flex: 2,
child: IconContainer(
Icons.ac_unit_sharp,
color: Colors.orange,
),
),
],
);
}
}层叠布局 Stack、Align、 Positioned
Stack表示堆的意思，我们可以用Stack或者Stack结合Align或者Stack结合 Positiond来实现页面的定位 布局
Stack
alignment 配置所有子元素的显示位置
dart
class HomePage extends StatelessWidget {
const HomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Stack(
alignment: Alignment.center,
children: [
Container(
height: 400,
width: 300,
color: Colors.red,
),
Container(
height: 200,
width: 200,
color: Colors.yellow,
),
const Text("你好Flutter"),
const Text("你好Flutter1111")
],
);
}
}Align
alignment 配置所有子元素的显示位置
dart
class HomePage extends StatelessWidget {
const HomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
//获取设备的宽度和高度
// final size = MediaQuery.of(context).size;
// （了解）算法：(Alignment.x*childWidth/2+childWidth/2, Alignment.y*childHeight/2+childHeight/2)
return Container(
width: 300,
height: 300,
color: Colors.red,
child: const Align(
alignment: Alignment(-0.5,1),
child: Text("你好Flutter"),
),
);
}
}Positioned
top 子元素距离顶部的距离 bottom 子元素距离底部的距离 left 子元素距离左侧距离 right 子元素距离右侧距离 child 子组件 width 组件的高度 （注意：宽度和高度必须是固定值，没法使用double.infinity） height 子组件的高度
dart
class HomePage extends StatelessWidget {
const HomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
//获取设备的宽度和高度
// final size = MediaQuery.of(context).size;
return Column(
children: [
SizedBox(
width: double.infinity,
height: 40,
child: Stack(
children: const [
Align(
alignment: Alignment.topLeft,
child: Text("收藏"),
),
Align(alignment: Alignment.topRight, child: Text("购买")),
],
),
),
SizedBox(
width: double.infinity,
height: 40,
child: Stack(
children: const [
Positioned(
left: 10,
child: Text("收藏"),
),
Positioned(right: 10, child: Text("购买")),
],
),
)
],
);
}
}FlutterMediaQuery
获取屏幕宽度和高度,固定导航栏
dart
class HomePage extends StatelessWidget {
const HomePage({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
//获取设备的宽度和高度
final size = MediaQuery.of(context).size;
return Stack(
children: [
ListView(
// padding: const EdgeInsets.only(top: 50),
children: const [
ListTile(title: Text("我是一个列表1")),
ListTile(title: Text("我是一个列表2")),
],
),
Positioned(
left: 0,
bottom: 0,
width: size.width, //配置子元素的宽度和高度 没法使用double.infinity
height: 44, //配置子元素的宽度和高度
child: Container(
alignment: Alignment.center,
color: Colors.black,
child: const Text(
"二级导航",
style: TextStyle(color: Colors.white),
),
))
],
);
}
}AspectRatio
AspectRatio的作用是根据设置调整子元素child的宽高比。
AspectRatio首先会在布局限制条件允许的范围内尽可能的扩展，widget的高度是由宽度和比率决定 的，类似于BoxFit中的contain，按照固定比率去尽量占满区域
如果在满足所有限制条件过后无法找到一个可行的尺寸，AspectRatio最终将会去优先适应布局限制条 件，而忽略所设置的比率。
aspectRatio 宽高比，最终可能不会根据这个值去布局，具体则要看综合因素，外层是否允许 按照这种比率进行布局，这只是一个参考值
页面上显示一个容器，宽度是屏幕的宽度，高度是容器宽度的一半
dart
class LayoutDemo extends StatelessWidget {
const LayoutDemo({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return AspectRatio(
aspectRatio: 2/1,
child: Container(
color: Colors.red,
),
);
}
//需求：页面上显示一个容器，宽度是屏幕的宽度，高度是容器宽度的一半
}Card
Card是卡片组件块，内容可以由大多数类型的Widget构成，Card具有圆角和阴影，这让它看起来有立 体感
margin 外边距
child 子组件
elevation 阴影值的深度
color 背景颜色
shadowColor 阴影颜色
margin 外边距
clipBehavior clipBehavior 内容溢出的剪切方式 Clip.none不剪切 Clip.hardEdge裁剪但不应 用抗锯齿 Clip.antiAlias裁剪而且抗锯齿 Clip.antiAliasWithSaveLayer带有抗锯齿的剪辑，并在剪辑之后立即保存saveLayer
Shape Card的阴影效果，默认的阴影效果为圆角的长方形边。 shape: const RoundedRectangleBorder( borderRadius: BorderRadius.all(Radius.circular(10)) ),
Card实现一个通讯录
dart
class LayoutDemo extends StatelessWidget {
const LayoutDemo({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return ListView(
children: [
Card(
shape: RoundedRectangleBorder(
//Card的阴影效果
borderRadius: BorderRadius.circular(10)),
elevation: 20, //阴影值的深度
margin: const EdgeInsets.all(10),
child: Column(
children: const [
ListTile(
title: Text("张三", style: TextStyle(fontSize: 28)),
subtitle: Text("高级软件工程师"),
),
Divider(),
ListTile(
title: Text("电话：152222222"),
),
ListTile(
title: Text("地址：北京市海淀区 xxx"),
),
],
),
),
Card(
shape: RoundedRectangleBorder(
//Card的阴影效果
borderRadius: BorderRadius.circular(10)),
elevation: 20,
margin: const EdgeInsets.all(10),
// color:Colors.black12, //背景颜色
child: Column(
children: const [
ListTile(
title: Text("李四", style: TextStyle(fontSize: 28)),
subtitle: Text("Flutter高级软件工程师"),
),
Divider(),
ListTile(
title: Text("电话：152222222"),
),
ListTile(
title: Text("地址：北京市海淀区 xxx"),
),
],
),
),
Card(
shape: RoundedRectangleBorder(
//Card的阴影效果
borderRadius: BorderRadius.circular(10)),
elevation: 20, //阴影值的深度
margin: const EdgeInsets.all(10),
child: Column(
children: const [
ListTile(
title: Text("张三", style: TextStyle(fontSize: 28)),
subtitle: Text("高级软件工程师"),
),
Divider(),
ListTile(
title: Text("电话：152222222"),
),
ListTile(
title: Text("地址：北京市海淀区 xxx"),
),
],
),
),
],
);
}
}Card实现一个图文列表卡片
dart
class LayoutDemo extends StatelessWidget {
const LayoutDemo({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return ListView(
children: [
Card(
shape: RoundedRectangleBorder(
borderRadius:BorderRadius.circular(10)
),
elevation: 20,
margin: const EdgeInsets.all(10),
child: Column(
children: [
AspectRatio(
aspectRatio: 16 / 9,
child: Image.network(
"https://www.itying.com/images/flutter/3.png",
fit: BoxFit.cover),
),
ListTile(
leading: ClipOval(
child:Image.network(
"https://www.itying.com/images/flutter/3.png",
fit: BoxFit.cover,
height: 40,
width: 40,
),
),
title: const Text("xxxxxxxxx"),
subtitle: const Text("xxxxxxxxx"),
)
],
),
),
Card(
shape: RoundedRectangleBorder(
borderRadius:BorderRadius.circular(10)
),
elevation: 20,
margin: const EdgeInsets.all(10),
child: Column(
children: [
AspectRatio(
aspectRatio: 16 / 9,
child: Image.network(
"https://www.itying.com/images/flutter/3.png",
fit: BoxFit.cover),
),
const ListTile(
leading: CircleAvatar(
backgroundImage: NetworkImage("https://www.itying.com/images/flutter/4.png"),
),
title: Text("xxxxxxxxx"),
subtitle: Text("xxxxxxxxx"),
)
],
),
)
],
);
}
}按钮组件
dart
ElevatedButton(
onPressed: () {
print("ElevatedButton");
},
child: const Text("普通按钮")),
TextButton(onPressed: () {}, child: const Text("文本按钮")),
OutlinedButton(onPressed: () {}, child: const Text("边框按钮")),
IconButton(onPressed: () {}, icon: const Icon(Icons.thumb_up))带图标的按钮
dart
ElevatedButton.icon(
onPressed: () {},
icon: const Icon(Icons.send),
label: const Text("发送")),
TextButton.icon(
onPressed: () {},
icon: const Icon(Icons.info),
label: const Text("消息")),
OutlinedButton.icon(
onPressed: null,
icon: const Icon(Icons.add),
label: const Text("增加"))修改按钮的宽度高度
dart
ElevatedButton(
style: ButtonStyle(
backgroundColor: WidgetStateProperty.all(Colors.red), //背景颜色
foregroundColor:
WidgetStateProperty.all(Colors.white) //文字图标颜色
),
onPressed: () {
print("ElevatedButton");
},
child: const Text("普通按钮")),自适应按钮
dart
Row(
children: [
Expanded(
flex: 1,
child: Container(
margin: const EdgeInsets.all(20),
height: 50,
child: ElevatedButton(
onPressed: () {},
style: ButtonStyle(
backgroundColor: WidgetStateProperty.all(
const Color.fromARGB(220, 245, 71, 71)),
foregroundColor:
WidgetStateProperty.all(Colors.white)),
child: const Text("登录"),
),
))
],
),圆角按钮
dart
ElevatedButton(
style: ButtonStyle(
shape: WidgetStateProperty .all(//圆角
RoundedRectangleBorder(
borderRadius: BorderRadius.circular(12)))),
onPressed: () {},
child: const Text("圆角")),圆形按钮
dart
SizedBox(
height: 80,
width: 80,
child: ElevatedButton(
style: ButtonStyle(
shape: WidgetStateProperty .all(//圆形
const CircleBorder(
side:
BorderSide(width: 2, color: Colors.yellow)))),
onPressed: () {},
child: const Text("圆形")),修改OutlinedButton边框
dart
OutlinedButton(
style: ButtonStyle(side: WidgetStateProperty.all(//修改边框颜色
const BorderSide(width: 1, color: Colors.red))),
onPressed: () {},
child: const Text("带边框的按钮"))

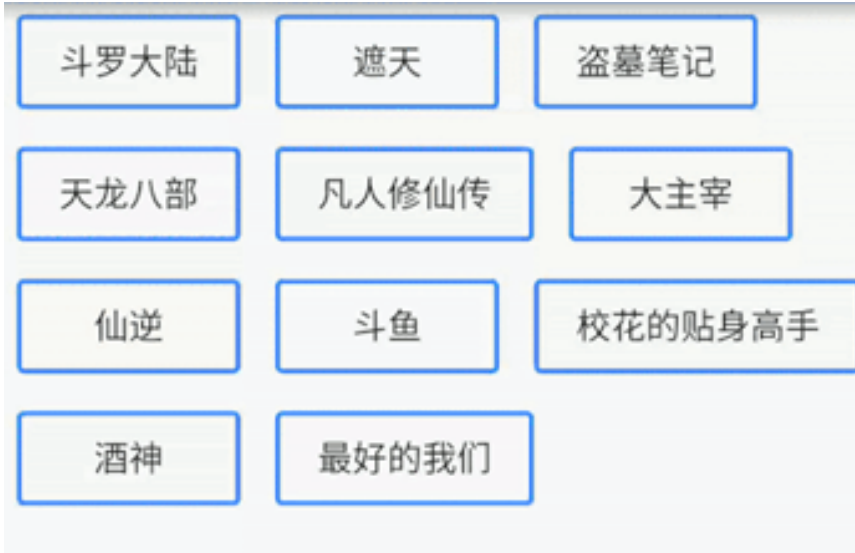

],Wrap组件
Wrap可以实现流布局，单行的Wrap跟Row表现几乎一致，单列的Wrap则跟Column表现几乎一致。但 Row与Column都是单行单列的，Wrap则突破了这个限制，mainAxis上空间不足时，则向crossAxis上 去扩展显示
direction 主轴的方向，默认水平
alignment 主轴的对其方式
spacing 主轴方向上的间距
textDirection 文本方向
verticalDirection 定义了children摆放顺序，默认是down，见Flex相关属性介绍。
runAlignment run的对齐方式。: run可以理解为新的行或者列，如果是水平方向布局的话， run可以理解为新的一行
runSpacing run的间距
dart
class LayoutDemo extends StatelessWidget {
const LayoutDemo({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Padding(
padding: const EdgeInsets.all(10),
child: Wrap(
alignment:WrapAlignment.spaceAround,
spacing: 10, //水平间距 *
runSpacing: 10, //垂直间距 *
// direction:Axis.vertical, *
children: [
Button("第 1 集", onPressed: () {}),
Button("第2集", onPressed: () {}),
Button("第3集", onPressed: () {}),
Button("第4集", onPressed: () {}),
Button("第5集", onPressed: () {}),
Button("第6集 (完结)", onPressed: () {}),
Button("第7集", onPressed: () {}),
Button("第8集", onPressed: () {}),
Button("第9集", onPressed: () {}),
Button("第10集", onPressed: () {}),
Button("第11集", onPressed: () {}),
Button("第12集", onPressed: () {}),
Button("第13集", onPressed: () {}),
Button("第14集", onPressed: () {}),
Button("第15集", onPressed: () {}),
Button("第16集", onPressed: () {}),
Button("第17集", onPressed: () {}),
Button("第18集", onPressed: () {}),
],
),
);
}
}StatefulWidget
StatelessWidget是无状态组件，状态不可变的widget
StatefulWidget是有状态组件，持有的状态可能在widget生命周期改变。
通俗的讲：如果我们想改变页面中的数据的话这个时候就需要用到StatefulWidget
实现一个计数器的功能
dart
//有状态组件
class HomePage extends StatefulWidget {
const HomePage({super.key});
@override
State<HomePage> createState() => _HomePageState();
}
class _HomePageState extends State<HomePage> {
int _numCount = 0;
@override
Widget build(BuildContext context) {
print(_numCount);
return Scaffold(
appBar: AppBar(title: const Text("flutter App")),
body: Center(
child: Column(
mainAxisAlignment: MainAxisAlignment.center,
children: [
Text(
"$_numCount",
style: Theme.of(context).textTheme.headlineLarge,
),
const SizedBox(height: 60),
ElevatedButton(
onPressed: () {
setState(() {
_numCount++;
});
},
child: const Text("增加"))
],
),
),
);
}
}实现一个动态列表
dart
//有状态组件:如果我们想改变页面中的数据的话这个时候就需要用到StatefulWidget
class HomePage extends StatefulWidget {
const HomePage({super.key});
@override
State<HomePage> createState() => _HomePageState();
}
class _HomePageState extends State<HomePage> {
final List<String> _list = [];
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(title: const Text("Flutter App")),
floatingActionButton: FloatingActionButton(
child: const Icon(Icons.add),
onPressed: () {
//改变数据必须加上setState
setState(() {
_list.add("我是一个新增的列表");
});
},
),
body: ListView(
children: _list.map((v) {
return ListTile(
title: Text(v),
);
}).toList(),
),
);
}
}Scaffold属性
自定义底部导航
BottomNavigationBar 是底部导航条，可以让我们定义底部Tab切换，bottomNavigationBar是 Scaffold组件的参数。
dart
class Tabs extends StatefulWidget {
const Tabs({super.key});
@override
State<Tabs> createState() => _TabsState();
}
class _TabsState extends State<Tabs> {
int _currentIndex = 0;
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(title: const Text("Flutter App")),
body: const Text("FLutter App"),
bottomNavigationBar: BottomNavigationBar(
currentIndex: _currentIndex,
onTap: (index) {
//注意
setState(() {
_currentIndex = index;
});
},
items: const [
BottomNavigationBarItem(icon: Icon(Icons.home), label: "首页"),
BottomNavigationBarItem(icon: Icon(Icons.category), label: "分类"),
BottomNavigationBarItem(icon: Icon(Icons.settings), label: "设置")
]),
);
}
}动态切换页面
dart
import 'package:flutter/material.dart';
import './tabs/home.dart';
import './tabs/category.dart';
import './tabs/setting.dart';
import './tabs/user.dart';
class Tabs extends StatefulWidget {
const Tabs({super.key});
@override
State<Tabs> createState() => _TabsState();
}
class _TabsState extends State<Tabs> {
int _currentIndex=0;
final List<Widget> _pages=const [
HomePage(),
CategoryPage(),
SettingPage(),
UserPage()
];
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(title: const Text("Flutter App")),
body: _pages[_currentIndex],
bottomNavigationBar: BottomNavigationBar(
fixedColor:Colors.red, //选中的颜色
iconSize:25, //底部菜单大小
currentIndex:_currentIndex, //第几个菜单选中
type:BottomNavigationBarType.fixed, //如果底部有4个或者4个以上的菜单的时候就需要配置这个参数
onTap:(index){ //点击菜单触发的方法
//注意
setState(() {
_currentIndex=index;
});
},
items: const [
BottomNavigationBarItem(
icon:Icon(Icons.home),
label: "首页"
),
BottomNavigationBarItem(
icon:Icon(Icons.category),
label: "分类"
),
BottomNavigationBarItem(
icon:Icon(Icons.settings),
label: "设置"
),
BottomNavigationBarItem(
icon:Icon(Icons.people),
label: "用户"
)
]),
);
}
}导航凸起按钮
FloatingActionButton实现类似闲鱼App底 部导航凸起按钮
dart
class Tabs extends StatefulWidget {
const Tabs({super.key});
@override
State<Tabs> createState() => _TabsState();
}
class _TabsState extends State<Tabs> {
int _currentIndex = 0;
final List<Widget> _pages = const [
HomePage(),
CategoryPage(),
MessagePage(),
SettingPage(),
UserPage()
];
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(title: const Text("Flutter App")),
body: _pages[_currentIndex],
bottomNavigationBar: BottomNavigationBar(
fixedColor: Colors.red, //选中的颜色
// iconSize:35, //底部菜单大小
currentIndex: _currentIndex, //第几个菜单选中
type: BottomNavigationBarType.fixed, //如果底部有4个或者4个以上的菜单的时候就需要配置这个参数
onTap: (index) {
//点击菜单触发的方法
//注意
setState(() {
_currentIndex = index;
});
},
items: const [
BottomNavigationBarItem(icon: Icon(Icons.home), label: "首页"),
BottomNavigationBarItem(icon: Icon(Icons.category), label: "分类"),
BottomNavigationBarItem(icon: Icon(Icons.message), label: "消息"),
BottomNavigationBarItem(icon: Icon(Icons.settings), label: "设置"),
BottomNavigationBarItem(icon: Icon(Icons.people), label: "用户")
]),
floatingActionButton: Container(
height: 60, //调整FloatingActionButton的大小
width: 60,
padding: const EdgeInsets.all(5),
margin: const EdgeInsets.only(top: 5), //调整FloatingActionButton的位置
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(30),
),
child: FloatingActionButton(
backgroundColor: _currentIndex == 2 ? Colors.red : Colors.blue,
child: const Icon(Icons.add),
onPressed: () {
setState(() {
_currentIndex = 2;
});
}),
),
floatingActionButtonLocation:
FloatingActionButtonLocation.centerDocked, //配置浮动按钮的位置
);
}
}抽屉菜单
Drawer
dart
class Tabs extends StatefulWidget {
const Tabs({super.key});
@override
State<Tabs> createState() => _TabsState();
}
class _TabsState extends State<Tabs> {
int _currentIndex = 0;
final List<Widget> _pages = const [
HomePage(),
CategoryPage(),
MessagePage(),
SettingPage(),
UserPage()
];
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(title: const Text("Flutter App")),
drawer:const Drawer(
child: Column(
children: [
Row(
children: [
Expanded(
flex: 1,
child: DrawerHeader(
decoration: const BoxDecoration(
// color: Colors.yellow,
image: DecorationImage(
image: NetworkImage(
"https://www.itying.com/images/flutter/2.png"),
fit: BoxFit.cover)),
child: Column(
children: const [
ListTile(
leading: CircleAvatar(
backgroundImage: NetworkImage(
"https://www.itying.com/images/flutter/3.png")),
title:
Text("张三", style: TextStyle(color: Colors.red)),
),
ListTile(
title: Text("邮箱：xxxx@qq.com"),
)
],
),
))
],
),
ListTile(
leading: CircleAvatar(
child: Icon(Icons.people),
),
title: Text("个人中心"),
),
Divider(),
ListTile(
leading: CircleAvatar(
child: Icon(Icons.settings),
),
title: Text("系统设置"),
),
Divider(),
],
),
),
endDrawer: const Drawer(
child: Text("右侧侧边栏"),
),
body: _pages[_currentIndex],
bottomNavigationBar: BottomNavigationBar(
fixedColor: Colors.red, //选中的颜色
// iconSize:35, //底部菜单大小
currentIndex: _currentIndex, //第几个菜单选中
type: BottomNavigationBarType.fixed, //如果底部有4个或者4个以上的菜单的时候就需要配置这个参数
onTap: (index) {
//点击菜单触发的方法
//注意
setState(() {
_currentIndex = index;
});
},
items: const [
BottomNavigationBarItem(icon: Icon(Icons.home), label: "首页"),
BottomNavigationBarItem(icon: Icon(Icons.category), label: "分类"),
BottomNavigationBarItem(icon: Icon(Icons.message), label: "消息"),
BottomNavigationBarItem(icon: Icon(Icons.settings), label: "设置"),
BottomNavigationBarItem(icon: Icon(Icons.people), label: "用户")
]),
floatingActionButton: Container(
height: 60, //调整FloatingActionButton的大小
width: 60,
padding: const EdgeInsets.all(5),
margin: const EdgeInsets.only(top: 5), //调整FloatingActionButton的位置
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(30),
),
child: FloatingActionButton(
backgroundColor: _currentIndex == 2 ? Colors.red : Colors.blue,
child: const Icon(Icons.add),
onPressed: () {
setState(() {
_currentIndex = 2;
});
}),
),
floatingActionButtonLocation:
FloatingActionButtonLocation.centerDocked, //配置浮动按钮的位置
);
}
}Bar
AppBar结合TabBar TabBarView 实现顶部Tab切换
dart
class HomePage extends StatefulWidget {
const HomePage({Key? key}) : super(key: key);
@override
State<HomePage> createState() => _HomePageState();
}
class _HomePageState extends State<HomePage>
with SingleTickerProviderStateMixin {
late TabController _tabController;
//生命周期函数:当组件初始化的时候就会触发
@override
void initState() {
super.initState();
_tabController = TabController(length: 9, vsync: this);
}
List<String> list = [];
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
leading: IconButton(
//左侧的按钮图标
icon: const Icon(Icons.menu),
onPressed: () {
print("左侧的按钮图标");
},
),
backgroundColor: Colors.red, //导航背景颜色
title: const Text("Flutter App",
style: TextStyle(color: Colors.white)),
actions: [
//右侧的按钮图标
IconButton(
icon: const Icon(Icons.search),
color:Colors.white,
onPressed: () {
print("搜索图标");
},
),
IconButton(
icon: const Icon(Icons.more_horiz),
onPressed: () {
print("更多");
},
)
],
bottom: TabBar(
isScrollable: true,
indicatorColor: Colors.white,
indicatorWeight: 2,
indicatorPadding: const EdgeInsets.all(5),
// indicatorSize:TabBarIndicatorSize.label,
labelColor: Colors.yellow,
unselectedLabelColor: Colors.white,
labelStyle: const TextStyle(fontSize: 14),
unselectedLabelStyle: const TextStyle(fontSize: 12),
indicator: BoxDecoration(
color: Colors.blue,
borderRadius: BorderRadius.circular(10)),
controller: _tabController, //注意：配置controller需要去掉TabBar上面的const
tabs: const [
Tab(
child: Text("关注"),
),
Tab(
child: Text("热门"),
),
Tab(
child: Text("视频"),
)
])),
body: TabBarView(controller: _tabController, children: [
const Text("我是关注"),
const Text("我是热门"),
ListView(
children: const [
ListTile(
title: Text("我是视频列表"),
)
],
)
]));
}
}自定义KeepAliveWrapper 缓存页面
dart
import 'package:flutter/material.dart';
class KeepAliveWrapper extends StatefulWidget {
const KeepAliveWrapper(
{Key? key, @required this.child, this.keepAlive = true})
: super(key: key);
final Widget? child;
final bool keepAlive;
@override
State<KeepAliveWrapper> createState() => _KeepAliveWrapperState();
}
class _KeepAliveWrapperState extends State<KeepAliveWrapper>
with AutomaticKeepAliveClientMixin {
@override
Widget build(BuildContext context) {
return widget.child!;
}
@override
bool get wantKeepAlive => widget.keepAlive;
@override
void didUpdateWidget(covariant KeepAliveWrapper oldWidget) {
if (oldWidget.keepAlive != widget.keepAlive) {
// keepAlive 状态需要更新，实现在 AutomaticKeepAliveClientMixin 中
updateKeepAlive();
}
super.didUpdateWidget(oldWidget);
}
}使用示例
dart
KeepAliveWrapper(
//自定义的缓存组件
child: ListView(
children: const [
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关33333注列表1"),
),
ListTile(
title: Text("我是关33333注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关2注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注2表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关33333注列表1"),
),
],
)),去掉debug图标
dart
return MaterialApp(
debugShowCheckedModeBanner:false, //去掉debug图标
title: 'Flutter Demo',
theme: ThemeData(
primarySwatch: Colors.blue,
),
home:const Tabs() ,
);preferredSize
PreferredSize可以改变appBar的高度
dart
Scaffold(
appBar: PreferredSize(
preferredSize: Size.fromHeight(50),
child: AppBar(
....
)
),
body: Test(),
)主页使用缓存+tabBar
dart
import 'package:flutter/material.dart';
import '../../tools/KeepAliveWrapper.dart';
class HomePage extends StatefulWidget {
const HomePage({super.key});
@override
State<HomePage> createState() => _HomePageState();
}
class _HomePageState extends State<HomePage>
with SingleTickerProviderStateMixin {
late TabController _tabController;
@override
void initState() {
super.initState();
_tabController = TabController(length: 8, vsync: this);
//监听_tabController的改变事件
_tabController.addListener(() {
// print(_tabController.index);
if (_tabController.animation!.value==_tabController.index){
print(_tabController.index); //获取点击或滑动页面的索引值
}
});
}
//组件销毁的时候触发
@override
void dispose() {
// TODO: implement dispose
super.dispose();
//销毁_tabController
_tabController.dispose();
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: PreferredSize(
//可以配置appBar的高度
preferredSize: const Size.fromHeight(40),
child: AppBar(
elevation: 0.5,
backgroundColor: Colors.white,
title: SizedBox(
//改TabBar的高度
height: 30,
child: TabBar(
labelStyle: const TextStyle(fontSize: 14),
isScrollable: true,
indicatorColor: Colors.red, //底部指示器的颜色
labelColor: Colors.red,
unselectedLabelColor: Colors.black, //lable未选中的颜色
indicatorSize: TabBarIndicatorSize.label,
controller: _tabController,
// onTap: (index){ //只能监听点击事件 没法监听滑动
// print(index);
// },
tabs: const [
Tab(
child: Text("关注"),
),
Tab(
child: Text("热门"),
),
Tab(
child: Text("视频"),
),
Tab(
child: Text("娱乐"),
),
Tab(
child: Text("篮球"),
),
Tab(
child: Text("深圳"),
),
Tab(
child: Text("疫情"),
),
Tab(
child: Text("其他"),
),
],
),
),
),
),
body: TabBarView(controller: _tabController, children: [
KeepAliveWrapper( //自定义的缓存组件
child: ListView(
children: const [
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关33333注列表1"),
),
ListTile(
title: Text("我是关33333注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关2注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注2表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关注列表1"),
),
ListTile(
title: Text("我是关33333注列表1"),
),
],
)),
const Text("我是热门"),
const Text("视频"),
const Text("娱乐"),
const Text("篮球"),
const Text("深圳"),
const Text("疫情"),
const Text("其他"),
]),
);
}
}Flutter中的路由
普通路由
dart
import '../search.dart';
ElevatedButton(onPressed: (){
//跳转路由
Navigator.of(context).push(
MaterialPageRoute(builder: (BuildContext context) {
return const SearchPage();
})
);
}, child: const Text("搜索"))普通路由跳转传值
定义接受值
dart
import 'package:flutter/material.dart';
//新闻页面接收上个页面穿过来的参数
class NewsPage extends StatefulWidget {
final String title;
final int aid;
// 定义接收值
const NewsPage({super.key, this.title = "新闻", required this.aid});
@override
State<NewsPage> createState() => _NewsPageState();
}
class _NewsPageState extends State<NewsPage> {
@override
void initState() {
// TODO: implement initState
super.initState();
print(widget.aid);
print(widget.title);
}
@override
Widget build(BuildContext context) {
return Scaffold(
floatingActionButton: FloatingActionButton(
onPressed: () {
//返回到上一页
Navigator.pop(context);
},
child: const Icon(Icons.home),
),
appBar: AppBar(
title: Text(widget.title), //获取NewsPage里面定义的title
),
body: const Center(
child: Text("新闻页面"),
),
);
}
}跳转页面实现传值
dart
ElevatedButton(onPressed: (){
//跳转路由
Navigator.of(context).push(
MaterialPageRoute(builder: (BuildContext context) {
return const NewsPage(title: "我是标题",aid: 12,);
})
);
}, child: const Text("跳转传值"))命名路由
main.dart中配置路由
dart
import 'package:flutter/material.dart';
import './pages/tabs.dart';
import './pages/search.dart';
import './pages/news.dart';
import './pages/form.dart';
void main() {
runApp(const MyApp());
}
class MyApp extends StatelessWidget {
const MyApp({Key? key}) : super(key: key);
// This widget is the root of your application.
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'Flutter Demo',
theme: ThemeData(
primarySwatch: Colors.blue,
),
// home:const Tabs() ,
initialRoute: "/",
routes: {
"/": (contxt) => const Tabs(),
"/news": (contxt) => const NewsPage(),
"/search": (contxt) => const SearchPage(),
"form": (contxt) {
return const FormPage();
},
},
);
}
}跳转路由
dart
ElevatedButton(onPressed: (){
Navigator.pushNamed(context, "/news");
}, child: const Text("命名路由跳转news")),命名路由传值
配置onGenerateRoute
dart
import 'package:flutter/material.dart';
import './pages/tabs.dart';
import './pages/search.dart';
import './pages/news.dart';
import './pages/form.dart';
import './pages/shop.dart';
void main() {
runApp(MyApp());
}
class MyApp extends StatelessWidget {
//1、配置路由
Map routes={
"/": (contxt) => const Tabs(),
"/news": (contxt) => const NewsPage(),
"/search": (contxt) => const SearchPage(),
"/form": (contxt,{arguments}) => FormPage(arguments:arguments),
"/shop": (contxt,{arguments}) => ShopPage(arguments:arguments),
};
MyApp({Key? key}) : super(key: key);
// This widget is the root of your application.
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'Flutter Demo',
theme: ThemeData(
primarySwatch: Colors.blue,
),
// home:const Tabs() ,
initialRoute: "/",
//2、配置onGenerateRoute 固定写法
onGenerateRoute: (RouteSettings settings){
// print(settings);
// print(settings.name);
// print(settings.arguments);
final String? name = settings.name; // /news 或者 /search
final Function? pageContentBuilder = routes[name]; // Function = (contxt) { return const NewsPage()}
if (pageContentBuilder != null) {
if (settings.arguments != null) {
final Route route = MaterialPageRoute(
builder: (context) =>
pageContentBuilder(context, arguments: settings.arguments));
return route;
} else {
final Route route = MaterialPageRoute(
builder: (context) => pageContentBuilder(context));
return route;
}
}
return null;
},
);
}
}定义页面接收arguments传参
dart
import 'package:flutter/material.dart';
//其他页面跳转到Form页面进行命名路由传值
class FormPage extends StatefulWidget {
final Map arguments;
const FormPage({super.key,required this.arguments});
@override
State<FormPage> createState() => _FormPageState();
}
class _FormPageState extends State<FormPage> {
@override
void initState() {
super.initState();
print(widget.arguments);
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar:AppBar(
title: const Text("表单"),
),
body: const Center(
child: Text("表单页面"),
),
);
}
}跳转页面实现传参
dart
ElevatedButton(
onPressed: () {
Navigator.pushNamed(context, "/form",
arguments: {"title": "我是命名路由传值", "aid": 20});
},
child: const Text("命名路由传值")),的命名路由单独抽离到一个文件
routers/routers.dart
dart
import 'package:flutter/material.dart';
import '../pages/tabs.dart';
import '../pages/search.dart';
import '../pages/news.dart';
import '../pages/form.dart';
import '../pages/shop.dart';
//1、配置路由
Map routes = {
"/": (contxt) => const Tabs(),
"/news": (contxt) => const NewsPage(),
"/search": (contxt) => const SearchPage(),
"/form": (contxt, {arguments}) => FormPage(arguments: arguments),
"/shop": (contxt, {arguments}) => ShopPage(arguments: arguments),
};
//2、配置onGenerateRoute 固定写法 这个方法也相当于一个中间件，这里可以做权限判断
var onGenerateRoute = (RouteSettings settings) {
final String? name = settings.name; // /news 或者 /search
final Function? pageContentBuilder = routes[name]; // Function = (contxt) { return const NewsPage()}
if (pageContentBuilder != null) {
if (settings.arguments != null) {
final Route route = MaterialPageRoute(
builder: (context) =>
pageContentBuilder(context, arguments: settings.arguments));
return route;
} else {
final Route route =
MaterialPageRoute(builder: (context) => pageContentBuilder(context));
return route;
}
}
return null;
};修改main.dart
dart
import 'package:flutter/material.dart';
import './routers/routers.dart';
void main() {
runApp(const MyApp());
}
class MyApp extends StatelessWidget {
const MyApp({Key? key}) : super(key: key);
// This widget is the root of your application.
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'Flutter Demo',
theme: ThemeData(
primarySwatch: Colors.blue,
),
initialRoute: "/",
onGenerateRoute: onGenerateRoute,
);
}
}返回上一级路由
dart
Navigator.of(context).pop();中替换路由
dart
Navigator.of(context).pushReplacementNamed('/registerSecond');返回根路由
pushAndRemoveUntil 使用返回的页面并删除所有以前的路由
dart
ElevatedButton(onPressed: () {
//返回到根页面
Navigator.of(context).pushAndRemoveUntil(
MaterialPageRoute(builder: (BuildContext context) {
return const Tabs(index: 4);
})
, (route) => false);
}, child: const Text("完成注册"))Android 和Ios使用同样风格的路由跳转
现版本 MaterialPageRoute 在android好像就是左右切换
Material组件库中提供了一个MaterialPageRoute组件，它可以使用和平台风格一致的路由切换动画， 如在iOS上会左右滑动切换，而在Android上会上下滑动切换 , CupertinoPageRoute是Cupertino组件库 提供的iOS风格的路由切换组件如果在Android上也想使用左右切换风格，可以使用 CupertinoPageRoute。
dart
import 'package:flutter/cupertino.dart';全局配置主题
dart
return MaterialApp(
debugShowCheckedModeBanner: false,
title: 'Flutter Demo',
theme: ThemeData(
primarySwatch: Colors.blue,
appBarTheme: const AppBarTheme(
centerTitle: true,
)
),
initialRoute: "/",
onGenerateRoute: onGenerateRoute,
);Dialog
AlertDialog
dart
void _alertDialog() async {
var result = await showDialog(
barrierDismissible: false, //表示点击灰色背景的时候是否消失弹出框
context: context,
builder: (context) {
return AlertDialog(
title: const Text("提示信息!"),
content: const Text("您确定要删除吗"),
actions: [
TextButton(
onPressed: () {
print("ok");
Navigator.of(context).pop("ok"); //点击按钮让AlertDialog消失
},
child: const Text("确定")),
TextButton(
onPressed: () {
print("cancel");
Navigator.of(context).pop("取消");
},
child: const Text("取消"))
],
);
});
print("-----------");
print(result);
}
ElevatedButton(
onPressed: _alertDialog,
child: const Text('alert弹出框-AlertDialog '),
),SimpleDialog
dart
void _simpleDialog() async {
var result = await showDialog(
barrierDismissible: false, //表示点击灰色背景的时候是否消失弹出框
context: context,
builder: (context) {
return SimpleDialog(
title: const Text("请选择语言"),
children: [
SimpleDialogOption(
onPressed: () {
print("汉语");
Navigator.pop(context, "汉语");
},
child: const Text("汉语"),
),
const Divider(),
SimpleDialogOption(
onPressed: () {
print("英语");
Navigator.pop(context, "英语");
},
child: const Text("英语"),
),
const Divider(),
SimpleDialogOption(
onPressed: () {
print("日语");
Navigator.pop(context, "日语");
},
child: const Text("日语"),
),
const Divider(),
],
);
});
print("-----------");
print(result);
}
ElevatedButton(
onPressed: _simpleDialog,
child: const Text('select弹出框-SimpleDialog'),
),底部弹出框
dart
void _modelBottomSheet() async{
var result =await showModalBottomSheet(
context: context,
builder: (context) {
return SizedBox(
height: 240,
child: Column(
crossAxisAlignment: CrossAxisAlignment.center,
children: [
ListTile(
title: const Text("分享"),
onTap: () {
print("分享");
Navigator.of(context).pop("分享");
},
),
const Divider(),
ListTile(
title: const Text("收藏"),
onTap: () {
print("收藏");
Navigator.of(context).pop("收藏");
},
),
const Divider(),
ListTile(
title: const Text("取消"),
onTap: () {
print("取消");
Navigator.of(context).pop("取消");
},
),
const Divider(),
],
),
);
});
print(result);
}
ElevatedButton(
onPressed: _modelBottomSheet,
child: const Text('ActionSheet底部弹出框'),
),Toast
https://pub.dev/packages/fluttertoast
dart
# add this line to your dependencies
fluttertoast: ^8.0.9dart
import 'package:fluttertoast/fluttertoast.dart';
void _toast() {
Fluttertoast.showToast(
msg: "提示信息",
toastLength: Toast.LENGTH_LONG, //值针对 android 平台
gravity: ToastGravity.CENTER, //方位
timeInSecForIosWeb: 1, //提示时间 针对ios 和 web
backgroundColor: Colors.black, //背景颜色
textColor: Colors.white, //文本颜色
fontSize: 16.0 //文本字体大小
);
}
ElevatedButton(
onPressed: _toast,
child: const Text('Toast'),
)自定义Dialog
dart
import 'package:flutter/material.dart';
class MyDialog extends Dialog {
final String title;
final String content;
final Function()? onTap;
const MyDialog(
{Key? key,
required this.title,
required this.content,
required this.onTap})
: super(key: key);
@override
Widget build(BuildContext context) {
return Material(
type: MaterialType.transparency, //设置背景透明
child: Center(
//主要要包裹一个组件，不然会全屏
child: Container(
height: 240,
width: 240,
decoration:const BoxDecoration(
color:Colors.white,
borderRadius: BorderRadius.all(Radius.circular(12)),
),
child: Column(
children: [
Padding(
padding: const EdgeInsets.all(5),
child: Stack(
children: [
Align(
alignment: Alignment.centerLeft,
child: Text(
title,
style: const TextStyle(fontSize: 18),
),
),
Align(
alignment: Alignment.centerRight,
child: InkWell(
onTap: onTap,
child: const Icon(Icons.close),
),
)
],
),
),
const Divider(),
Container(
padding: const EdgeInsets.all(10),
width: double.infinity,
child: Text(content, style: const TextStyle(fontSize: 14)),
)
],
),
),
),
);
}
}使用
dart
void _myDialog() async {
var result=await showDialog(
barrierDismissible: false, //表示点击灰色背景的时候是否消失弹出框
context: context,
builder: (context) {
return MyDialog(
title: "提示!",
content: "我是一个内容",
onTap: (){
print("close");
Navigator.of(context).pop("我是自定义dialog关闭的事件");
},
);
});
print(result);
}Flutter定时器
dart
import 'dart:async';
var t = Timer.periodic(Duration(milliseconds: 3000), (t) {
print('关闭');
// Navigator.of(context).pop();
// t.cancel();
});
t.cancel();PageView
Flutter中的轮动图以及抖音上下滑页切换视频功能等等，这些都可以通过 PageView 轻松实现
scrollDirection Axis.horizonta水平方向 Axis.vertical锤子方向
allowImplicitScrolling 缓存当前页面的前后两页
onPageChanged page改变的时候触发
PageView 的使用
dart
import 'package:flutter/material.dart';
class PageViewPage extends StatefulWidget {
const PageViewPage({super.key});
@override
State<PageViewPage> createState() => _PageViewPageState();
}
class _PageViewPageState extends State<PageViewPage> {
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: const Text('Title'),
),
body: PageView(
scrollDirection:Axis.vertical, //配置PageView滑动的方向,默认是水平方向
children: [
Center(
child: Text("第1屏",style: Theme.of(context).textTheme.displayLarge,)
),
Center(
child: Text("第2屏",style: Theme.of(context).textTheme.displayLarge,)
),
Center(
child: Text("第3屏",style: Theme.of(context).textTheme.displayLarge,)
),
Center(
child: Text("第4屏",style: Theme.of(context).textTheme.displayLarge,)
),
Center(
child: Text("第5屏",style: Theme.of(context).textTheme.displayLarge,)
),
Center(
child: Text("第6屏",style: Theme.of(context).textTheme.displayLarge,)
),
Center(
child: Text("第7屏",style: Theme.of(context).textTheme.displayLarge,)
),
],
),
);
}
}PageView.builder
dart
import 'package:flutter/material.dart';
class PageViewBuilderPage extends StatefulWidget {
const PageViewBuilderPage({super.key});
@override
State<PageViewBuilderPage> createState() => _PageViewBuilderPageState();
}
class _PageViewBuilderPageState extends State<PageViewBuilderPage> {
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: const Text('PageViewBuilder'),
),
body: PageView.builder(
scrollDirection:Axis.vertical, //垂直
itemCount: 10,
itemBuilder: (context, index) {
return Center(
child: Text(
"第${index + 1}屏",
style: Theme.of(context).textTheme.displayLarge,
));
}),
);
}
}无限加载的实现思路
dart
import 'package:flutter/material.dart';
import '../widget/image.dart';
class PageViewSwiper extends StatefulWidget {
const PageViewSwiper({super.key});
@override
State<PageViewSwiper> createState() => _PageViewSwiperState();
}
class _PageViewSwiperState extends State<PageViewSwiper> {
List<Widget> list = [];
int _currentIndex=0;
@override
void initState() {
// TODO: implement initState
super.initState();
list = const [
ImagePage(
src: "https://www.itying.com/images/flutter/1.png",
),
ImagePage(
src: "https://www.itying.com/images/flutter/2.png",
),
ImagePage(
src: "https://www.itying.com/images/flutter/3.png",
),
];
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: const Text('PageViewSwiper'),
),
body: Stack(
children: [
SizedBox(
height: 200,
child: PageView.builder(
onPageChanged: (index){
/*
1、刚开始 _currentIndex=0
2、index=1 _currentIndex=1
3、index=2 _currentIndex=2
4、index=3 _currentIndex=0
5、index=4 _currentIndex=1
6、index=5 _currentIndex=2
7、index=6 _currentIndex=0
*/
setState(() {
_currentIndex=index % list.length;
});
},
itemCount: 1000,
itemBuilder: (context, index) {
return list[index % list.length];
// index的值是0-1000
// 0 1 2 0 1 2 0 1 2
}),
),
Positioned(
left: 0,
right: 0, //设置 left:0 right:0就会站满整行
bottom: 2,
child: Row(
mainAxisAlignment: MainAxisAlignment.center,
children: List.generate(list.length, (index){
return Container(
margin: const EdgeInsets.all(5),
width: 10, height: 10,
decoration: BoxDecoration(
color: _currentIndex==index?Colors.blue:Colors.grey,
shape: BoxShape.circle //圆
// borderRadius: BorderRadius.circular(5) //圆
),
);
}).toList(),
))
],
),
);
}
}自动滚动
PageController 可以控制 PageView
dart
import 'dart:async';
import 'package:flutter/material.dart';
class Swiper extends StatefulWidget {
final double width;
final double height;
final List<String> list;
const Swiper(
{super.key,
this.height = 200,
this.width = double.infinity,
required this.list});
@override
State<Swiper> createState() => _SwiperState();
}
class _SwiperState extends State<Swiper> {
int _currentIndex = 0;
List<Widget> pageList = [];
late PageController _pageController;
late Timer timer;
@override
void initState() {
// TODO: implement initState
super.initState();
//数据
for (var i = 0; i < widget.list.length; i++) {
pageList.add(ImagePage(
width: widget.width, height: widget.height, src: widget.list[i]));
}
//PageController
_pageController = PageController(initialPage: 0);
timer = Timer.periodic(const Duration(seconds: 5), (t) {
_pageController.animateToPage((_currentIndex + 1) % pageList.length,
duration: const Duration(milliseconds: 200), curve: Curves.linear);
});
}
@override
void dispose() {
// TODO: implement dispose
super.dispose();
timer.cancel();
_pageController.dispose();
}
@override
Widget build(BuildContext context) {
return Stack(
children: [
SizedBox(
height: 200,
child: PageView.builder(
controller: _pageController,
onPageChanged: (index) {
setState(() {
_currentIndex = index % pageList.length;
});
},
itemCount: 1000,
itemBuilder: (context, index) {
return pageList[index % pageList.length];
// index的值是0-1000
// 0 1 2 0 1 2 0 1 2
}),
),
Positioned(
left: 0,
right: 0, //设置 left:0 right:0就会站满整行
bottom: 2,
child: Row(
mainAxisAlignment: MainAxisAlignment.center,
children: List.generate(pageList.length, (index) {
return Container(
margin: const EdgeInsets.all(5),
width: 10,
height: 10,
decoration: BoxDecoration(
color: _currentIndex == index ? Colors.blue : Colors.grey,
shape: BoxShape.circle //圆
// borderRadius: BorderRadius.circular(5) //圆
),
);
}).toList(),
))
],
);
}
}
class ImagePage extends StatelessWidget {
final double width;
final double height;
final String src;
const ImagePage(
{super.key,
this.width = double.infinity,
this.height = 200,
required this.src});
@override
Widget build(BuildContext context) {
return SizedBox(
width: width,
height: height,
child: Image.network(
src,
fit: BoxFit.cover,
),
);
}
}组件生命周期
dart
createState：创建 State 对象。
initState：初始化状态。
didChangeDependencies：在依赖发生变化时调用。
build：构建 widget 的 UI。
didUpdateWidget：在 widget 配置发生变化时调用。
deactivate：在 widget 从 widget 树中移除时调用。
dispose：在 widget 永久从 widget 树中移除时调用。
reassemble：在开发过程中，当代码热重载时调用。dart
@override
void initState() {
// TODO: implement initState
super.initState();
//数据
for (var i = 0; i < widget.list.length; i++) {
pageList.add(ImagePage(
width: widget.width, height: widget.height, src: widget.list[i]));
}
//PageController
_pageController = PageController(initialPage: 0);
timer = Timer.periodic(const Duration(seconds: 5), (t) {
_pageController.animateToPage((_currentIndex + 1) % pageList.length,
duration: const Duration(milliseconds: 200), curve: Curves.linear);
});
}
@override
void dispose() {
// TODO: implement dispose
super.dispose();
timer.cancel();
_pageController.dispose();
}Key详解
Key是不能重复使用的，所以Key一般用来做唯一标识。组件在更新的时候，其状态的保存 主要是通过判断组件的类型或者key值是否一致。
LocalKey
dart
List<Widget> list = [ //注意：常量没法改变
//1、可以保存状态 2、可以排序
const Box(
key: ValueKey('1'),
color: Colors.red,
),
Box(
key: UniqueKey(), //唯一值 每次运行的时候会随机生成
color: Colors.yellow,
),
const Box(
key: ObjectKey(Box(color: Colors.blue)),
color: Colors.blue
)
];GlobalKey
如果把LocalKey比作局部变量， GlobalKey就类似于全局变量
使用了LocalKey，当屏幕状态改变的时候把 Colum换成了Row，Box的状态就会丢失
GlobalKey优化，把LocalKey换成GlobalKey
dart
List<Widget> list=[];
final GlobalKey _globalKey1=GlobalKey();
final GlobalKey _globalKey2=GlobalKey();
final GlobalKey _globalKey3=GlobalKey();
@override
void initState() {
// TODO: implement initState
super.initState();
list = [ //注意：常量没法改变
//1、可以保存状态 2、可以排序
Box(
key: _globalKey1,
color: Colors.red,
),
Box(
key: _globalKey2, //唯一值 每次允许的时候会随机生成
color: Colors.yellow,
),
Box(
key:_globalKey3,
color: Colors.blue
)
];
}GlobalKey 获取子组件
globalKey.currentState 可以获取子组件的状态，执行子组件的方法，globalKey.currentWidget可以获 取子组件的属性，_globalKey.currentContext!.findRenderObject()可以获取渲染的属性。
dart
//1、获取子组件的状态 调用子组件的属性
var state=(_globalKey.currentState as _BoxState);
setState(() {
state._count++;
});
//2、获取子组件的属性
var box=(_globalKey.currentWidget as Box);
print(box.color);AnimatedList 实现动态列表
AnimatedList 和 ListView 的功能大体相似，不同的是， AnimatedList 可以在列表中插入或删除节点时 执行一个动画，在需要添加或删除列表项的场景中会提高用户体验。
AnimatedList 是一个 StatefulWidget，它对应的 State 类型为 AnimatedListState，添加和删除元素的 方法位于 AnimatedListState 中：
key globalKey final globalKey = GlobalKey();
initialItemCount 子元素数量
itemBuilder 方法 ( BuildContext context, int index, Animation animation) {}
增删示例
dart
import 'dart:async';
import 'package:flutter/material.dart';
void main() {
runApp(const MyApp());
}
class MyApp extends StatelessWidget {
const MyApp({Key? key}) : super(key: key);
// This widget is the root of your application.
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'Flutter Demo',
theme: ThemeData(
primarySwatch: Colors.blue,
),
home: const HomePage(),
);
}
}
class HomePage extends StatefulWidget {
const HomePage({super.key});
@override
State<HomePage> createState() => _HomePageState();
}
class _HomePageState extends State<HomePage> {
final _globalKey = GlobalKey<AnimatedListState>();
bool flag = true;
List<String> list = ["第一条", "第二条"];
Widget _buildItem(index) {
return ListTile(
key: ValueKey(index),
title: Text(list[index]),
trailing: IconButton(
icon: const Icon(Icons.delete),
onPressed: () {
//执行删除
_deleteItem(index);
},
),
);
}
_deleteItem(index) {
if (flag == true) {
flag = false;
//执行删除
_globalKey.currentState!.removeItem(index, (context, animation) {
//animation的值是从1到0
var removeItem = _buildItem(index);
list.removeAt(index); //数组中删除数据
return ScaleTransition(
// opacity: animation,
scale: animation,
child: removeItem, //删除的时候执行动画的元素
);
});
//解决快速删除的bug
Timer.periodic(const Duration(milliseconds: 500), (timer) {
flag = true;
timer.cancel();
});
}
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: const Text('Title'),
),
floatingActionButton: FloatingActionButton(
child: Icon(Icons.add),
onPressed: () {
list.add("我是新增的数据");
_globalKey.currentState!.insertItem(list.length - 1);
},
),
body: AnimatedList(
key: _globalKey,
initialItemCount: list.length,
itemBuilder: ((context, index, animation) {
//animation的值是从0到1
return FadeTransition(
opacity: animation,
child: _buildItem(index),
);
})),
);
}
}
